Get mongodb metrics error

Cihan_Tunali · May 26, 2021, 6:30am

Hello,

I have a problem with Pmm agent which is it can not get data from mongodb time to time. I could not find why it is happening from mongodb logs. Pmm agent says there is no data, it can not get data from mongodb but at same time I can query mongodb without any problem. Here is my inventory:

PMM server 2.9.0
Pmm agent 2.9.1
Mongodb 4.4.5

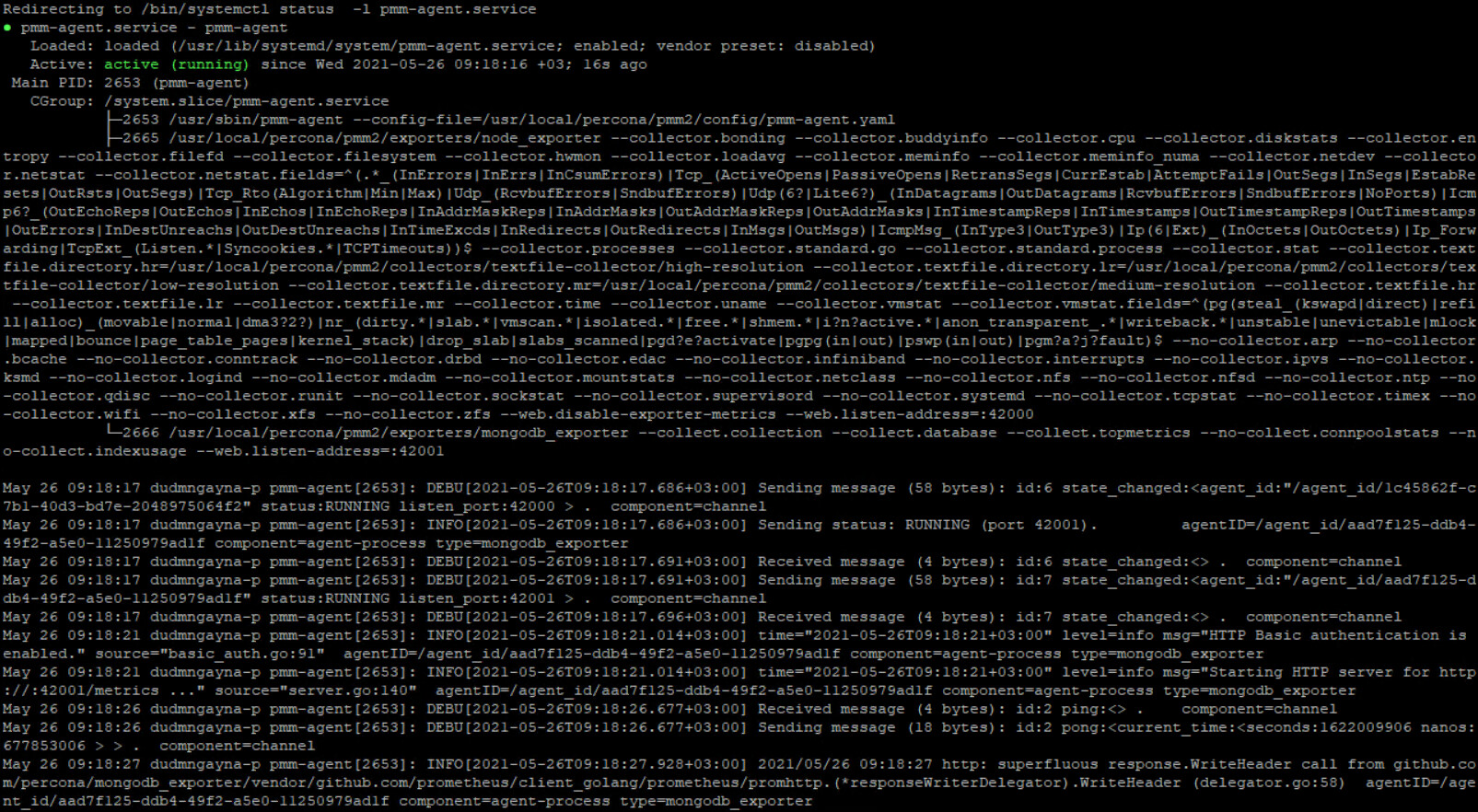

PMM agent status:

MongoDB profiler is disabled. After restarting pmm-agent service status has been changed:

I found some articles about this situation:
https://github.com/prometheus/prometheus/issues/6139
https://jira.percona.com/browse/PMM-5848

But no luck
At PMM dashboard, It can not get data

About same mongodb server, not all metrics gave no data, for example Replication Set status, Max member ping time, oplog recovery window, oplog buffer capacity these are have same status, they dont have data. But other metrics like hearthbeat time, elections, operations have data without interruption.

I can not update PMM server and agent because of mongodb_exporter incompability. (MongoDB latency metrics - #16 by Ghan) Can somebody have any idea about this problem? Thanks!

carlos.salguero · June 2, 2021, 12:35pm

Hi,
Can you check your mongodb_exporter version ?

Cihan_Tunali · June 2, 2021, 10:17pm

here you are

By the way, I tried to add a blank node and waited to sync finished. Then checked its status via pmm agent but result is the same.

Also I backed up all data from mongo db and restore them to newly created cluster. After restore finished, pmm agent gave same behavior on them.

I got almost 25 mongodb cluster and only this one gave this errors. I think it is related with data, how can I be sure about it?

carlos.salguero · June 3, 2021, 4:10pm

Hello again.
I would try to run the exporter manually and increasing the debug level. Something like this:

mongodb_exporter --mongodb.uri=mongodb://127.0.0.1:17001 --log.level=debug --compatible-mode
ans then browse to http://localhost:9216/metrics and check if you see metrics in the browser and/or errors in the console output.
Also you could try downloading the latest agent from:

Let me know if that helps.

Regards

Cihan_Tunali · June 4, 2021, 11:02am

Thank you @carlos.salguero , I am happy that I found you related with mongodb_exporter I will try to run exporter manually and let you know about results.

Also I have two open cases related with mongodb_exporter which are

I will be glad if you have chance to check them out.

Cihan_Tunali · June 4, 2021, 12:48pm

Update,

I tried to check manually but it gave error

Then I ran it without and started to debug. I called metrics URL within 10 secs, all of them gave me data. But at same time, at PMM, there is no data? Any idea why is that?

steve.hoffman · June 4, 2021, 3:02pm

Hmmm…given that all other clients are working I’m suspicious of networking. can you check https://<pmm-server>/prometheus/targets and see if there are any errors mentioned about that server?

There’s 3 things happening: PMM client getting metrics from system (but you manually were able to verify that by @carlos.salguero suggestion), PMM server asking for those metrics (PMM server retrieves from client was only option at your version), and PMM Displays the data.

What you find from that URL above might point us to which of the two remaining pieces to look at.

carlos.salguero · June 4, 2021, 6:33pm

It seems like the agent is not really working/connecting.
The ONLY metric you have is replset_my_state showing the server is up, but nothing else.

steve.hoffman · June 4, 2021, 9:16pm

Boy I missed that…you should be getting HUNDREDS of metrics back if the exporter is properly retrieving…so then the issue actually ISN’T network or PMM server that part is working… so why would this one agent not be able to get metrics? Permissions?

Cihan_Tunali · June 7, 2021, 7:09am

Hi there,

Thank you for you replies @carlos.salguero and @steve.hoffman . The thing is metric can get data -sometimes- but only mongodb_mongod_replset_my_state and mongodb_mongod_metrics_repl_buffer_size_bytes got this problem. I mean other metrics works fine with that particular server and other server which are connected to PMM.

Node_exporter can get metrics without delay, mongodb_exporter can not. I dont know what is happened… I will migrate that particular machine to another host tonight, maybe it is related with HW, I dont know…

Cihan_Tunali · June 7, 2021, 7:54am

@carlos.salguero do you have comment about my other cases?

Cihan_Tunali · June 8, 2021, 6:58am

Hello

After migration related VM to another host, my problem is gone I really dont know how it is related but I think it is because of IO ?

Can somebody explain me how might be related with my problem? Thanks!

Cihan_Tunali · June 8, 2021, 9:19am

Same problem exist at Pmm2.18 with pmm2-client-2.18.0

Here it is

carlos.salguero · June 10, 2021, 12:52pm

Hello.
Sadly, what I can see doesn’t say much.
In the images you attached, I can see the output of a curl request but I would need the console log of the mongo exporter in which you specified --log-level=debug.

Thanks

Cihan_Tunali · June 10, 2021, 11:47pm

Here you are @carlos.salguero

Since the server has “SECONDARY” state, mongodb_exporter can not show it

Here is debug output

DEBU[0000] Compatible mode: true
DEBU[0000] Connection URI: mongodb://username:username!123!@servername-s:27017/admin
INFO[0000] Starting HTTP server for http://:42002/metrics … source=“server.go:144”
DEBU[0079] getDiagnosticData result
{}
DEBU[0079] replSetGetStatus result:
{
“$clusterTime”: {
“clusterTime”: {
“T”: 1623368377,
“I”: 1
},
“signature”: {
“hash”: {
“Subtype”: 0,
“Data”: “mFCLs2axEpchQ7rFR8/mTHukWNI=”
},
“keyId”: 6937552495887515649
}
},
“date”: “2021-06-11T02:39:42.114+03:00”,
“electionParticipantMetrics”: {
“electionCandidateMemberId”: 0,
“electionTerm”: 47,
“lastAppliedOpTimeAtElection”: {
“t”: 46,
“ts”: {
“T”: 1623095762,
“I”: 1
}
},
“lastVoteDate”: “2021-06-07T22:56:08.718+03:00”,
“maxAppliedOpTimeInSet”: {
“t”: 46,
“ts”: {
“T”: 1623095762,
“I”: 1
}
},
“newTermAppliedDate”: “2021-06-07T22:56:11.023+03:00”,
“newTermStartDate”: “2021-06-07T22:56:08.88+03:00”,
“priorityAtElection”: 1,
“voteReason”: “”,
“votedForCandidate”: true
},
“heartbeatIntervalMillis”: 2000,
“lastStableRecoveryTimestamp”: {
“T”: 1623368347,
“I”: 1
},
“majorityVoteCount”: 2,
“members”: [
{
“_id”: 0,
“configTerm”: -1,
“configVersion”: 9,
“electionDate”: “2021-06-07T22:56:08+03:00”,
“electionTime”: {
“T”: 1623095768,
“I”: 1
},
“health”: 1,
“infoMessage”: “”,
“lastHeartbeat”: “2021-06-11T02:39:41.463+03:00”,
“lastHeartbeatMessage”: “”,
“lastHeartbeatRecv”: “2021-06-11T02:39:40.427+03:00”,
“name”: “servername-p:27017”,
“optime”: {
“t”: 47,
“ts”: {
“T”: 1623368377,
“I”: 1
}
},
“optimeDate”: “2021-06-11T02:39:37+03:00”,
“optimeDurable”: {
“t”: 47,
“ts”: {
“T”: 1623368377,
“I”: 1
}
},
“optimeDurableDate”: “2021-06-11T02:39:37+03:00”,
“pingMs”: 0,
“state”: 1,
“stateStr”: “PRIMARY”,
“syncSourceHost”: “”,
“syncSourceId”: -1,
“uptime”: 272623
},
{
“_id”: 1,
“configTerm”: -1,
“configVersion”: 9,
“health”: 1,
“infoMessage”: “”,
“lastHeartbeatMessage”: “”,
“name”: “servername-s:27017”,
“optime”: {
“t”: 47,
“ts”: {
“T”: 1623368377,
“I”: 1
}
},
“optimeDate”: “2021-06-11T02:39:37+03:00”,
“self”: true,
“state”: 2,
“stateStr”: “SECONDARY”,
“syncSourceHost”: “servername-p:27017”,
“syncSourceId”: 0,
“uptime”: 1418613
},
{
“_id”: 2,
“configTerm”: -1,
“configVersion”: 9,
“health”: 1,
“infoMessage”: “”,
“lastHeartbeat”: “2021-06-11T02:39:41.462+03:00”,
“lastHeartbeatMessage”: “”,
“lastHeartbeatRecv”: “2021-06-11T02:39:41.462+03:00”,
“name”: “servername-a:27017”,
“pingMs”: 0,
“state”: 7,
“stateStr”: “ARBITER”,
“syncSourceHost”: “”,
“syncSourceId”: -1,
“uptime”: 1418411
},
{
“_id”: 3,
“configTerm”: -1,
“configVersion”: 9,
“health”: 1,
“infoMessage”: “”,
“lastHeartbeat”: “2021-06-11T02:39:40.118+03:00”,
“lastHeartbeatMessage”: “”,
“lastHeartbeatRecv”: “2021-06-11T02:39:40.117+03:00”,
“name”: “servername-s2:27017”,
“optime”: {
“t”: 47,
“ts”: {
“T”: 1623368377,
“I”: 1
}
},
“optimeDate”: “2021-06-11T02:39:37+03:00”,
“optimeDurable”: {
“t”: 47,
“ts”: {
“T”: 1623368377,
“I”: 1
}
},
“optimeDurableDate”: “2021-06-11T02:39:37+03:00”,
“pingMs”: 0,
“state”: 2,
“stateStr”: “SECONDARY”,
“syncSourceHost”: “servername-s:27017”,
“syncSourceId”: 1,
“uptime”: 428
}
],
“myState”: 2,
“ok”: 1,
“operationTime”: {
“T”: 1623368377,
“I”: 1
},
“optimes”: {
“appliedOpTime”: {
“t”: 47,
“ts”: {
“T”: 1623368377,
“I”: 1
}
},
“durableOpTime”: {
“t”: 47,
“ts”: {
“T”: 1623368377,
“I”: 1
}
},
“lastAppliedWallTime”: “2021-06-11T02:39:37.044+03:00”,
“lastCommittedOpTime”: {
“t”: 47,
“ts”: {
“T”: 1623368377,
“I”: 1
}
},
“lastCommittedWallTime”: “2021-06-11T02:39:37.044+03:00”,
“lastDurableWallTime”: “2021-06-11T02:39:37.044+03:00”,
“readConcernMajorityOpTime”: {
“t”: 47,
“ts”: {
“T”: 1623368377,
“I”: 1
}
},
“readConcernMajorityWallTime”: “2021-06-11T02:39:37.044+03:00”
},
“set”: “replsetname”,
“syncSourceHost”: “servername-p:27017”,
“syncSourceId”: 0,
“term”: 47,
“votingMembersCount”: 3,
“writableVotingMembersCount”: 2,
“writeMajorityCount”: 2
}
DEBU[0079] replSetGetStatus result:
{
“$clusterTime”: {
“clusterTime”: {
“T”: 1623368377,
“I”: 1
},
“signature”: {
“hash”: {
“Subtype”: 0,
“Data”: “mFCLs2axEpchQ7rFR8/mTHukWNI=”
},
“keyId”: 6937552495887515649
}
},
“date”: “2021-06-11T02:39:42.135+03:00”,
“electionParticipantMetrics”: {
“electionCandidateMemberId”: 0,
“electionTerm”: 47,
“lastAppliedOpTimeAtElection”: {
“t”: 46,
“ts”: {
“T”: 1623095762,
“I”: 1
}
},
“lastVoteDate”: “2021-06-07T22:56:08.718+03:00”,
“maxAppliedOpTimeInSet”: {
“t”: 46,
“ts”: {
“T”: 1623095762,
“I”: 1
}
},
“newTermAppliedDate”: “2021-06-07T22:56:11.023+03:00”,
“newTermStartDate”: “2021-06-07T22:56:08.88+03:00”,
“priorityAtElection”: 1,
“voteReason”: “”,
“votedForCandidate”: true
},
“heartbeatIntervalMillis”: 2000,
“lastStableRecoveryTimestamp”: {
“T”: 1623368347,
“I”: 1
},
“majorityVoteCount”: 2,
“members”: [
{
“_id”: 0,
“configTerm”: -1,
“configVersion”: 9,
“electionDate”: “2021-06-07T22:56:08+03:00”,
“electionTime”: {
“T”: 1623095768,
“I”: 1
},
“health”: 1,
“infoMessage”: “”,
“lastHeartbeat”: “2021-06-11T02:39:41.463+03:00”,
“lastHeartbeatMessage”: “”,
“lastHeartbeatRecv”: “2021-06-11T02:39:40.427+03:00”,
“name”: “servername-p:27017”,
“optime”: {
“t”: 47,
“ts”: {
“T”: 1623368377,
“I”: 1
}
},
“optimeDate”: “2021-06-11T02:39:37+03:00”,
“optimeDurable”: {
“t”: 47,
“ts”: {
“T”: 1623368377,
“I”: 1
}
},
“optimeDurableDate”: “2021-06-11T02:39:37+03:00”,
“pingMs”: 0,
“state”: 1,
“stateStr”: “PRIMARY”,
“syncSourceHost”: “”,
“syncSourceId”: -1,
“uptime”: 272623
},
{
“_id”: 1,
“configTerm”: -1,
“configVersion”: 9,
“health”: 1,
“infoMessage”: “”,
“lastHeartbeatMessage”: “”,
“name”: “servername-s:27017”,
“optime”: {
“t”: 47,
“ts”: {
“T”: 1623368377,
“I”: 1
}
},
“optimeDate”: “2021-06-11T02:39:37+03:00”,
“self”: true,
“state”: 2,
“stateStr”: “SECONDARY”,
“syncSourceHost”: “servername-p:27017”,
“syncSourceId”: 0,
“uptime”: 1418613
},
{
“_id”: 2,
“configTerm”: -1,
“configVersion”: 9,
“health”: 1,
“infoMessage”: “”,
“lastHeartbeat”: “2021-06-11T02:39:41.462+03:00”,
“lastHeartbeatMessage”: “”,
“lastHeartbeatRecv”: “2021-06-11T02:39:41.462+03:00”,
“name”: “servername-a:27017”,
“pingMs”: 0,
“state”: 7,
“stateStr”: “ARBITER”,
“syncSourceHost”: “”,
“syncSourceId”: -1,
“uptime”: 1418411
},
{
“_id”: 3,
“configTerm”: -1,
“configVersion”: 9,
“health”: 1,
“infoMessage”: “”,
“lastHeartbeat”: “2021-06-11T02:39:42.119+03:00”,
“lastHeartbeatMessage”: “”,
“lastHeartbeatRecv”: “2021-06-11T02:39:42.118+03:00”,
“name”: “servername-s2:27017”,
“optime”: {
“t”: 47,
“ts”: {
“T”: 1623368377,
“I”: 1
}
},
“optimeDate”: “2021-06-11T02:39:37+03:00”,
“optimeDurable”: {
“t”: 47,
“ts”: {
“T”: 1623368377,
“I”: 1
}
},
“optimeDurableDate”: “2021-06-11T02:39:37+03:00”,
“pingMs”: 0,
“state”: 2,
“stateStr”: “SECONDARY”,
“syncSourceHost”: “servername-s:27017”,
“syncSourceId”: 1,
“uptime”: 428
}
],
“myState”: 2,
“ok”: 1,
“operationTime”: {
“T”: 1623368377,
“I”: 1
},
“optimes”: {
“appliedOpTime”: {
“t”: 47,
“ts”: {
“T”: 1623368377,
“I”: 1
}
},
“durableOpTime”: {
“t”: 47,
“ts”: {
“T”: 1623368377,
“I”: 1
}
},
“lastAppliedWallTime”: “2021-06-11T02:39:37.044+03:00”,
“lastCommittedOpTime”: {
“t”: 47,
“ts”: {
“T”: 1623368377,
“I”: 1
}
},
“lastCommittedWallTime”: “2021-06-11T02:39:37.044+03:00”,
“lastDurableWallTime”: “2021-06-11T02:39:37.044+03:00”,
“readConcernMajorityOpTime”: {
“t”: 47,
“ts”: {
“T”: 1623368377,
“I”: 1
}
},
“readConcernMajorityWallTime”: “2021-06-11T02:39:37.044+03:00”
},
“set”: “replsetname”,
“syncSourceHost”: “servername-p:27017”,
“syncSourceId”: 0,
“term”: 47,
“votingMembersCount”: 3,
“writableVotingMembersCount”: 2,
“writeMajorityCount”: 2
}
DEBU[0079] getDiagnosticData result
{}

I faced with same problem again even there is no VM or host related problem. I isoleted that particular server. The problem still exists. Kindly require your help.

Cihan_Tunali · June 11, 2021, 6:46am

One more info too :

Above post about mongodb_exporter v20 and pmm2-client-2.18. I tried to collect metrics from pmm-agent-2.9.0 with NA mongodb_exporter version and it can collect data.

But when I check it from PMM explorer, It does not have data

I sense that, it took much time to get data from pmm-agent. I tested it via

curl -o /dev/null -s -w ‘Establish Connection: %{time_connect}s\nTTFB: %{time_starttransfer}s\nTotal: %{time_total}s\n’ --user ‘pmm:/agent_id/68f968fd-6496-432f-b60a-1b6f899da1d0’ http://10.0.0.0:42003/metrics

Here is the result

Time to first byte is not it too much? Because of this might be it gave timeout error? How can I be sure about it?

Cihan_Tunali · June 18, 2021, 6:22am

Hi @carlos.salguero , do you have time to check please? Thanks!

Cihan_Tunali · June 23, 2021, 9:01am

anybody here to help or went vocation ?

Cihan_Tunali · July 5, 2021, 6:14am

Hello,

Any news @carlos.salguero ?

Topic		Replies	Views
MongoDB cluster not getting populated on PMM2 dashboard PMM 2.x mongodb-exporter	5	1104	January 24, 2023
Missing Mongos metrics on the PMM 2.15.1 PMM 2.x	8	1606	April 20, 2021
MongoDB metrics not captured correctly PMM 2.x	6	548	August 1, 2020
Problems after upgrading from 2.9.0 to 2.11.1 PMM 2.x pmm , mongodb	20	2642	August 31, 2022
PMM does not display metrics when either agent or target MongoDB is down PMM 1.x	7	1687	August 17, 2017

Get mongodb metrics error

Related topics
